Ruijie Reyee RG-ES200 AI Managed Smart Switch Series
RG-ES200 combines AI / Smart Protection, Ruijie Cloud management, PoE power, CCTV maintenance and outdoor deployment capabilities to help Hong Kong SMEs prevent common network issues, speed up troubleshooting and simplify day-to-day management.
AI Managed
PoE
CCTV
Outdoor
×
A Long-Term Partnership, from Products to Technical Support
AlphGa is a Ruijie Gold Partner, and our team also holds Ruijie Specialist Engineer (for Reyee) certification.
Partner Status
Ruijie Gold Partner
Engineering Certification
Ruijie Specialist Engineer（for Reyee）
Ruijie Network Solutions
As a Gold Partner, AlphGa provides support for Ruijie network product selection and deployment.
Certified Technical Team
AlphGa's engineering team holds relevant Ruijie technical certifications and can support network deployment and troubleshooting.
Local Hong Kong Support
Our Hong Kong-based team can plan, deploy and maintain Ruijie networks according to each business's on-site environment.
Why Choose the Ruijie RG-ES200 Series?
Port count is only the starting point when choosing a model. Day-to-day operation also depends on whether the switch can prevent common network issues, centrally manage PoE, quickly troubleshoot CCTV faults and support outdoor installation environments.
The RG-ES200 Series addresses four key real-world deployment needs:

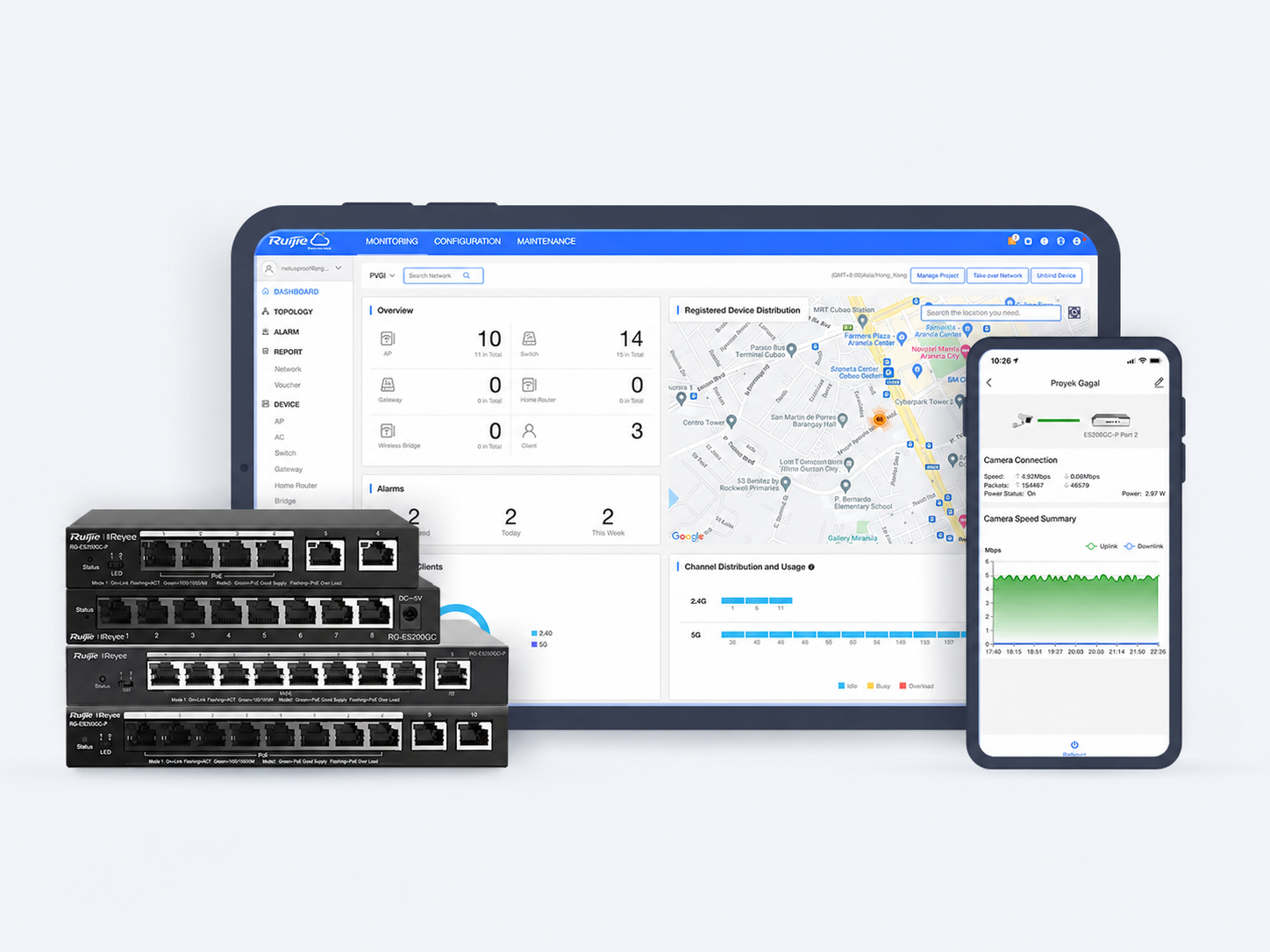

Ruijie Cloud: Smart Protection and AI Diagnostics
With the Ruijie Reyee App and Ruijie Cloud, RG-ES200 brings Smart Protection, AI Diagnostics, IPC Recognition and remote management into everyday switch maintenance. SMEs and multi-branch networks can identify IP conflicts, abnormal DHCP activity or network loops earlier, and locate faults faster when CCTV connections go down.
Smart Protection and AI Diagnostics
IP Conflict Prevention
RG-ES200 detects IP conflicts between newly connected devices and existing cameras, and automatically handles common conflicts to prioritise connectivity for important devices and reduce disconnections caused by duplicate IP addresses.
DHCP Snooping / Rogue DHCP Protection
Automatically identifies abnormal or unauthorised DHCP servers to prevent devices from receiving incorrect gateway, subnet or IP settings. When used with a Reyee EG Router, it can also automatically block unauthorised DHCP servers.
Loop Prevention
When incorrect cabling creates a network loop, the switch can automatically identify and shut down the affected port to prevent the loop from spreading across the network. The port can resume operation after the issue is resolved.
One-click AI Diagnostics
Use Ruijie Cloud / Reyee App to check cameras, network connectivity and device health in one click, quickly identifying where to investigate first so engineers can begin recovery work sooner.
Ruijie Cloud Management Features
IPC / NVR Recognition
Quickly identify IP cameras / NVRs on the CCTV network so engineers can see device and connection status.
Mobile VLAN Configuration
Manage VLANs through the Ruijie Reyee App / Ruijie Cloud to simplify network segmentation for CCTV, office and guest Wi-Fi networks.
Remote Monitoring
View switch statistics, port status and device status centrally. Selected models also support remote operations such as PoE Watchdog and Port Restart.

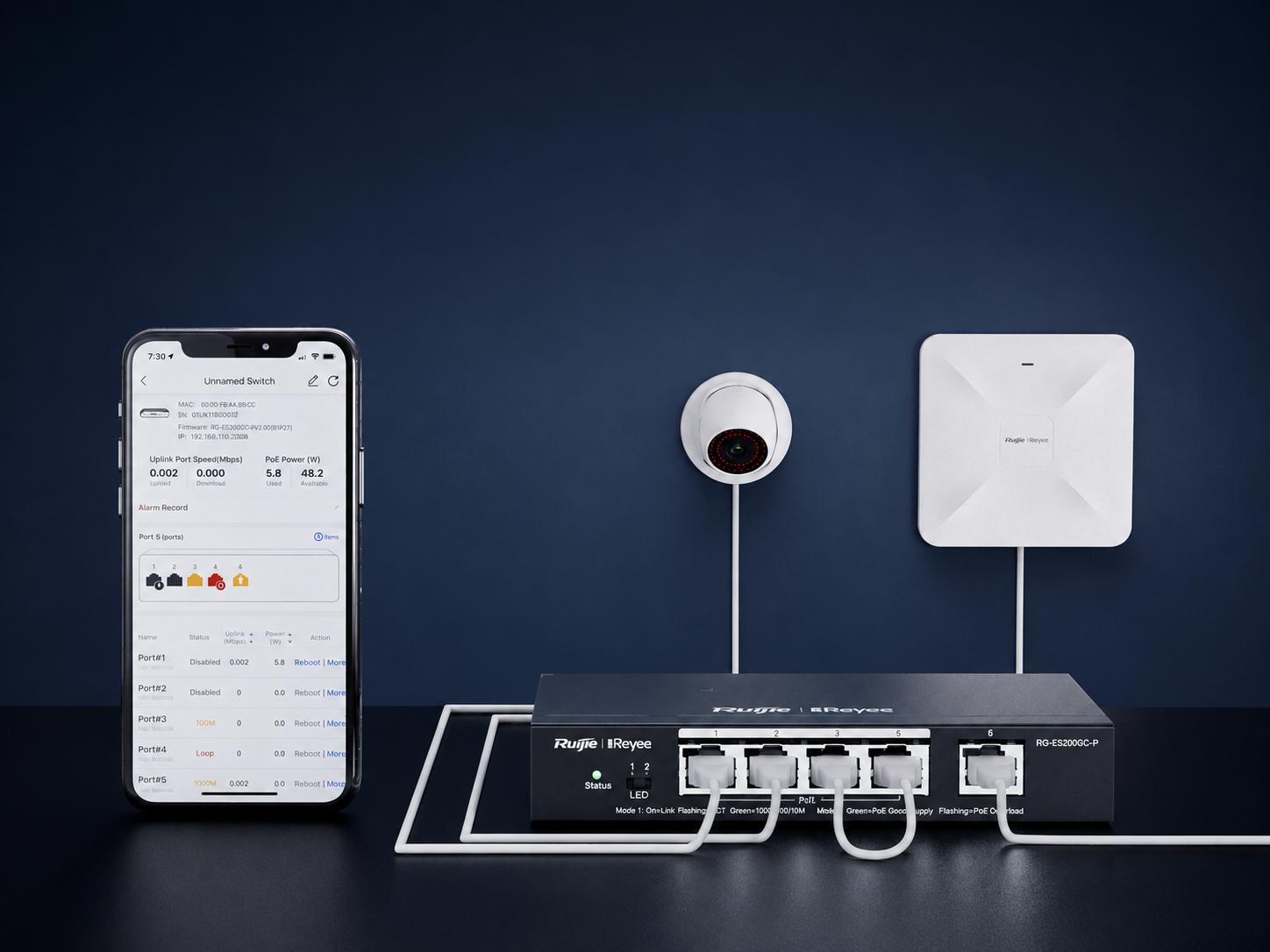

One Ethernet Cable for Connectivity, Power and Maintenance
Cameras, access points and IP phones can all be powered via PoE. When choosing a model, check each port’s PoE standard, the total PoE budget, power behaviour during switch restarts and available remote maintenance functions.
PoE / PoE+ / PoE++
Choose PoE Based on the Model and Device Power Requirements
Different models support PoE, PoE+ or PoE++. RG-ES207GS-HP provides 2 × PoE++ ports, 2 × PoE+ ports and a 120 W total PoE budget, making it suitable for devices such as PTZ cameras and high-power access points.
Total PoE Budget
Enough Ports Is Not Enough — Check the Total Power Budget
Even with enough PoE ports, the total PoE budget must still meet the power requirements of all connected devices, with extra capacity reserved for future expansion.

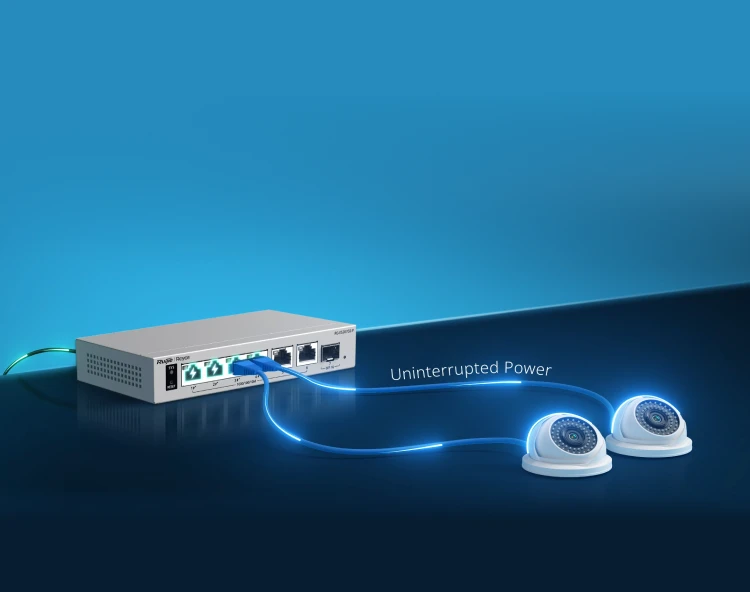

Perpetual PoE
Maintain PoE Power During Switch Restarts
Selected models support Perpetual PoE, maintaining PoE power during a switch restart, although network traffic may still be temporarily interrupted.

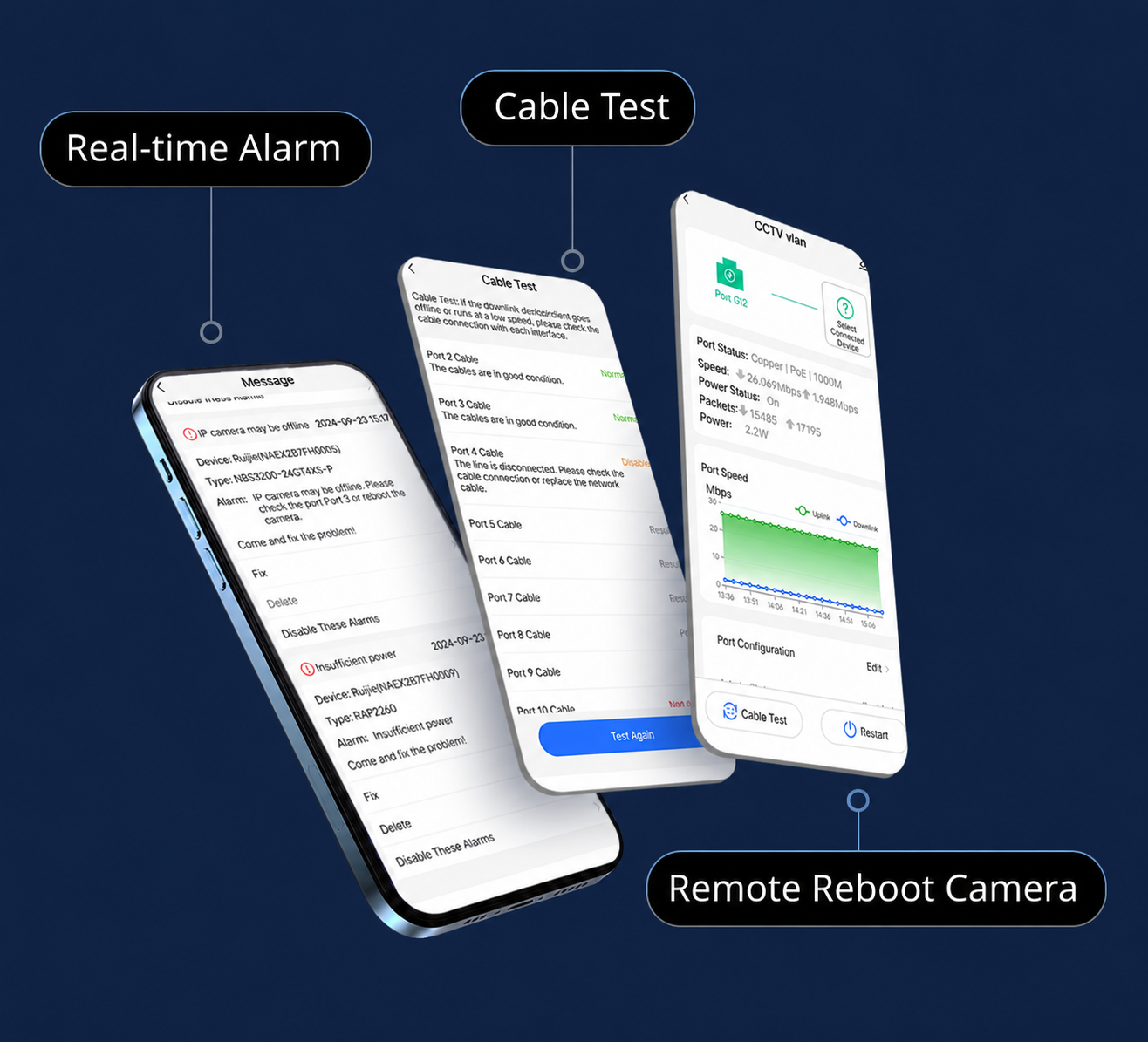

Troubleshoot CCTV Faults Faster and Perform Remote Maintenance
Once connected to Ruijie Cloud, engineers can view camera, switch port, PoE and cable status, run cable tests or remotely restart cameras to identify the cause of disconnections faster and reduce unnecessary on-site visits and service interruptions.
IPC / NVR Recognition
Identify Multi-Brand CCTV Devices
Can identify selected third-party IP cameras / NVRs from brands such as Hikvision and Dahua.
One-click Diagnostics / Cable Test
Trace Faults from the Port to the Problem Point
Review camera offline or abnormal power alerts, then use one-click diagnostics and Cable Test to check device health, switch ports, PoE and cable connections.
Remote Recovery
Restore Camera Service Remotely
After checking port and PoE status, engineers can remotely restart a camera and verify whether connectivity has been restored. Diagnostic records can also support any subsequent on-site inspection.
CCTV Deployment, Distance and Expansion
4 / 8 / 16 / 24 PoE Ports
Scale from Small Systems to 24 PoE Cameras
The product range covers small systems with up to 4 cameras through to deployments with up to 24 PoE cameras. Choose a model based on camera count, PoE budget and expansion requirements.
SFP / SFP+ / Long-distance
Choose Fibre or Up to 250 m Transmission Based on Distance
The series includes models with dedicated SFP / SFP+ uplinks. Selected RG-ES200 models also support PoE and data transmission over distances of up to 250 m, reducing the need for an additional local switch at remote camera locations. Depending on the model and configuration, ports in long-range mode may operate at full-duplex 10 Mbps.
Simplified Installation
Reduce Power and Network Accessories
PoE carries both power and data over the same Ethernet cable, directly reducing the need for additional power points. With long-range mode or fibre uplinks, remote camera locations may also require fewer local switches and installation accessories, simplifying future maintenance.
Ruijie Outdoor Switch: Simplified Power and Connectivity for Outdoor CCTV
The RG-ES200 Outdoor Series provides IP65 protection and includes AC input and PoE-In / 12 V DC input models to support the power, fibre uplink and ring-network requirements of outdoor CCTV deployments.

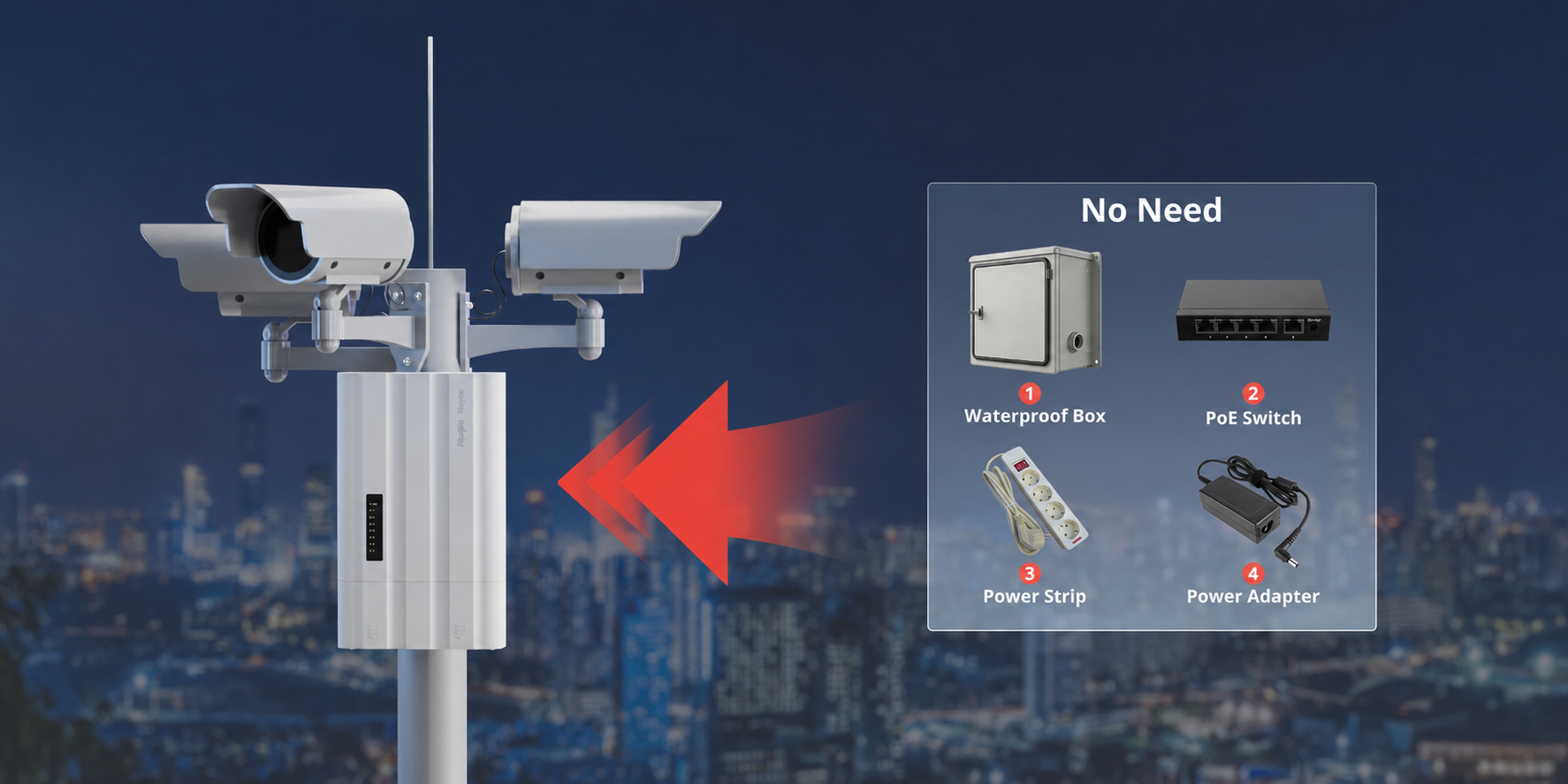

Simplified Outdoor Deployment
Reduce Accessories and Failure Points to Simplify Outdoor CCTV Maintenance
When installed according to the manufacturer’s requirements, the Outdoor Switch combines PoE, IP65 protection and fibre uplinks in a single network node, reducing the need for some weatherproof enclosures and separate power accessories. This simplifies both on-site cabling and future inspections. Once connected to Ruijie Cloud, engineers can also remotely view device status and troubleshoot connectivity issues.
IP65
Dust and Water Protection
–30°C to +65°C
RG-ES207GS-PI-OD Operating Temperature
±8 kV PoE Surge Protection
PoE Service Ports on RG-ES207GS-PI-OD
2 × 1GE SFP + ERPS
Fibre Uplinks and Ring Redundancy
AC Input Model
RG-ES207GS-AC-OD
Where AC power is already available on site, RG-ES207GS-AC-OD can centrally connect cameras, provide PoE power and connect to the upstream network.
PoE-In / 12 V DC Input Model
RG-ES207GS-PI-OD
Where AC power is not available on site, RG-ES207GS-PI-OD can be powered via PoE-In or 12 V DC. PoE-In carries both power and data over a single Ethernet cable and can also be used with DC, battery or solar power deployments.

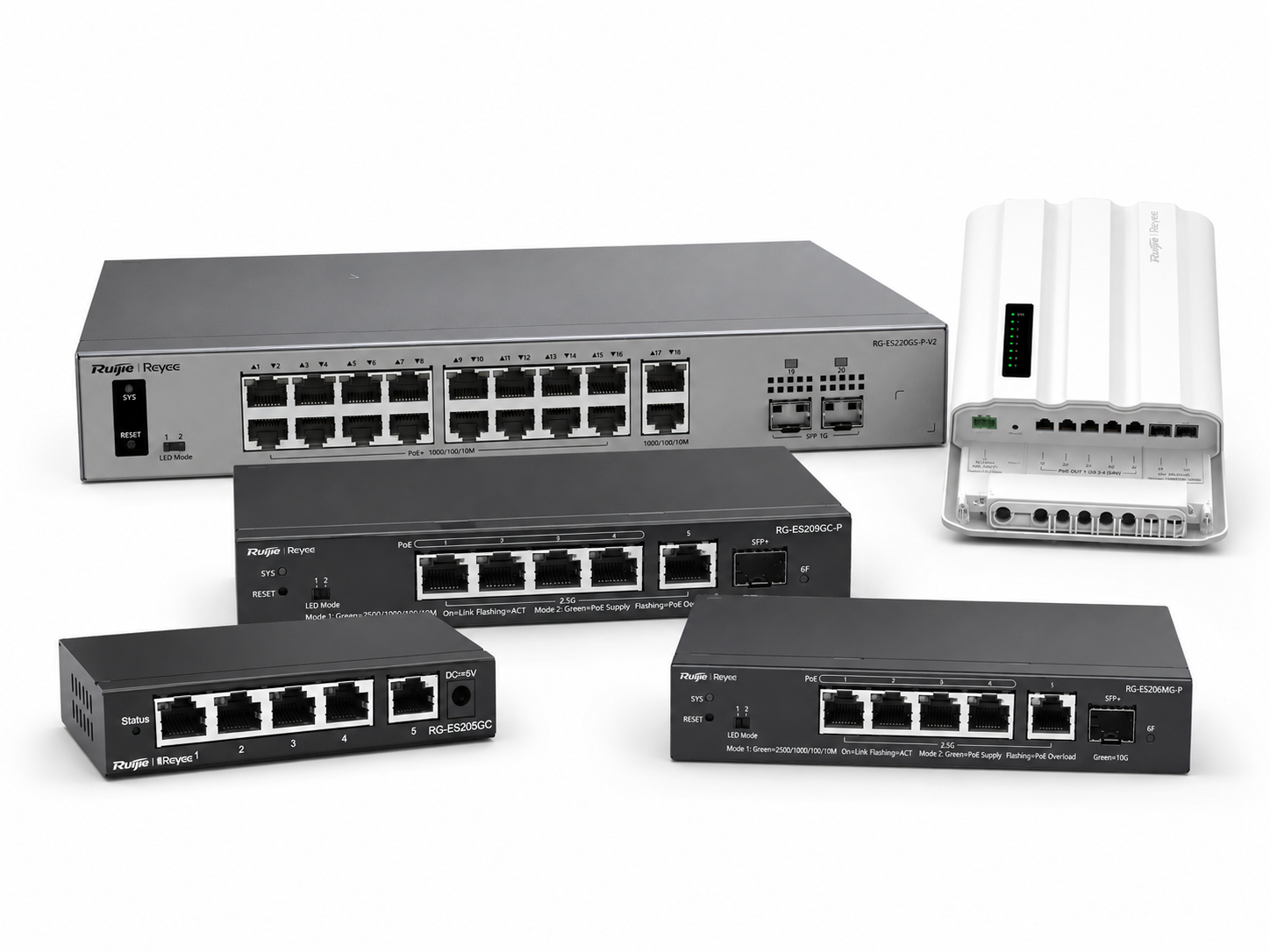

RG-ES200 Series Overview
The RG-ES200 Series includes PoE, non-PoE and outdoor PoE models. PoE models are available in both Gigabit and 2.5G versions. Models vary in port count, PoE budget, uplinks, Cloud / Smart features and installation environment.
On mobile, swipe left or right to view the full specifications.
| Model | PoE Ports | PoE Budget | Uplink / Other |
|---|---|---|---|
| RG-ES205GC-P | 4 × PoE/PoE+ | 54 W | 5 × Gigabit RJ45 |
| RG-ES206GS-P | 4 × PoE/PoE+ | 54 W | 1 × GE RJ45 + 1 × Combo SFP |
| RG-ES207GS-HP | 2 × PoE++ + 2 × PoE+ | 120 W | 2 × GE RJ45 + 1 × 1GE SFP |
| RG-ES207GS-LP | 4 × PoE+ | 40 W | 2 × GE RJ45 + 1 × 1GE SFP |
| RG-ES207GS-P | 4 × PoE+ | 54 W | 2 × GE RJ45 + 1 × 1GE SFP |
| RG-ES209GC-P | 8 × PoE/PoE+ | 120 W | 9 × Gigabit RJ45 |
| RG-ES210GS-P | 8 × PoE/PoE+ | 120 W | 1 × GE RJ45 + 1 × Combo SFP |
| RG-ES211GS-LP | 8 × PoE+ | 70 W | 2 × GE RJ45 + 1 × 1GE SFP |
| RG-ES211GS-P | 8 × PoE+ | 120 W | 2 × GE RJ45 + 1 × 1GE SFP |
| RG-ES220GS-LP | 16 × PoE+ | 130 W | 2 × GE RJ45 + 2 × 1GE SFP |
| RG-ES220GS-P | 16 × PoE/PoE+ | 250 W | 2 × GE RJ45 + 2 × SFP |
| RG-ES220GS-P-V2 | 16 × PoE+ | 250 W | 2 × GE RJ45 + 2 × 1GE SFP |
| RG-ES228GS-LP | 24 × PoE+ | 250 W | 2 × GE RJ45 + 2 × 1GE SFP |
| RG-ES228GS-P | 24 × PoE/PoE+ | 370 W | 2 × GE RJ45 + 2 × SFP |
| RG-ES228GS-P-V2 | 24 × PoE+ | 370 W | 2 × GE RJ45 + 2 × 1GE SFP |
| Model | PoE Ports | PoE Budget | Uplink / Other |
|---|---|---|---|
| RG-ES206MG-P | 4 × 2.5G PoE+ | 70 W | 1 × 2.5G RJ45 + 1 × 10GE SFP+ |
| RG-ES209MG-P | 8 × 2.5G PoE+ | 130 W | 1 × 10GE SFP+ |
Suitable for deployments with higher edge-bandwidth or Wi-Fi AP uplink requirements.
| Model | PoE Out | PoE Budget | Power and Uplink |
|---|---|---|---|
| RG-ES207GS-AC-OD | 4 × Gigabit PoE+ | 60 W | AC / 1 × GE RJ45 + 2 × 1GE SFP |
| RG-ES207GS-PI-OD | 4 × Gigabit PoE+ | Up to 60 W* | PoE In / 12 V DC + 2 × 1GE SFP |
*Actual PoE budget depends on input power. Both models support ERPS and IP65.
| Model | Ports | Key Features | Positioning |
|---|---|---|---|
| RG-ES205GC | 5 × Gigabit RJ45 | Cloud / VLAN / Loop / DHCP | Compact |
| RG-ES205GC-V2 | 5 × Gigabit RJ45 | Smart Cloud-managed | Compact |
| RG-ES208GC | 8 × Gigabit RJ45 | Cloud / VLAN / Loop / DHCP | Desktop |
| RG-ES208GC-V2 | 8 × Gigabit RJ45 | Smart Cloud-managed | Desktop |
| RG-ES216GC-V2 | 16 × Gigabit RJ45 | Smart Switch | Rack-mountable |
| RG-ES216GC2MS | 16 × Gigabit RJ45 | 2 × 2.5GE SFP / ERPS | Uplink |
| RG-ES224GC-V2 | 24 × Gigabit RJ45 | Smart Switch | Rack-mountable |
| RG-ES224GC2MS | 24 × Gigabit RJ45 | 2 × 2.5GE SFP / ERPS | Uplink |
Ruijie Provides the Products. AlphGa Plans, Deploys and Supports.
Based on your device list, PoE power requirements, uplink connections and on-site power availability, AlphGa will recommend suitable models, network segmentation and installation options.
Choose the Right Model for the Actual Environment
We calculate the required PoE budget, reserve ports for future expansion, and compare suitable models based on 1G, 2.5G, SFP and outdoor requirements.
Local Deployment Experience in Hong Kong
Offices, retail shops, restaurants, warehouses and properties all have different space, cabling and power conditions. We plan device locations, uplinks and power according to the actual site environment.
Troubleshoot Across the Entire Network
We check the switch, cameras, APs, VLANs, DHCP, cabling and gateway together to identify the source of faults across the entire network.
Local After-Sales and Cloud Support
From initial setup and VLAN configuration to Cloud and Smart Protection settings, support is provided by our Hong Kong-based team. Network issues can be investigated remotely or on site.
RG-ES200 Frequently Asked Questions
Before choosing a model, consider these practical questions about camera disconnections, PoE power and outdoor installation.
Check the network first before deciding whether to replace the camera. RG-ES200 and Ruijie Cloud can show camera, switch port, PoE, cable, IP, DHCP, VLAN, NVR and uplink status, helping narrow down the fault step by step.
RG-ES200 automatically handles common IP conflicts and shuts down affected ports when a network loop occurs. When used with a Reyee EG Router, it can also automatically block unauthorised DHCP servers. These functions address specific network issues; faults involving cabling, power, gateways, APs, NVRs, cameras or the ISP still require further investigation by engineers using the results from AI Diagnostics and Camera Troubleshooting.
You can first perform remote checks through Ruijie Cloud, PoE Watchdog or Camera Troubleshooting, then decide whether an on-site visit is required based on port status. RG-ES207GS-P supports Perpetual PoE, maintaining power to PoE ports during a switch restart, although network traffic may be briefly interrupted during the restart.
RG-ES207GS-AC-OD and RG-ES207GS-PI-OD both use IP65 outdoor enclosures. When installed according to the manufacturer’s instructions, an additional weatherproof box is generally not required for the switch itself. Cable entries, connectors, grounding and power components still need appropriate outdoor protection.
RG-ES207GS-PI-OD supports PoE In and 12 V DC input, making it suitable for locations without on-site AC power. If the upstream device provides sufficient PoE power, a single Ethernet cable can carry both data and power. With a suitable DC, battery or solar power design, it can also be used in solar-powered deployments. The PoE budget is up to 60 W, with actual available power depending on the input power.
Provide the number of devices, PoE power requirements, installation environment, power supply and uplink details, and AlphGa will calculate the required PoE budget and compare port counts, 1G / 2.5G, SFP and outdoor models. Capacity can also be reserved for future expansion.
Existing cameras can generally continue to be used if their network connection and PoE specifications are compatible with the selected switch. Ruijie Cloud can also identify cameras / NVRs from brands such as Hikvision and Dahua. AlphGa will check Camera Recognition and related management features based on the existing models and connection method.
